DEWA MULTI-Formliners

Polyurethane foam (PU) format for multiple usage in prefab projects or with in-situ concrete work / general construction and civil engineering. The DEWA Multi-Formliner is of excellent quality, features outstanding imaging characteristics and can be used many times over.

Product features

  • multiple applications, up to 100 times
  • first-rate imaging characteristics
  • elasticity for reliable removal from concrete
  • reinforced spines for the highest degree of dimensional accuracy + form stability
  • extensive product range
  • all formliners outfitted with a glass fibre inlay

Scope of applications

  • manufacture of finished parts
  • suitable for all repetitive surfaces
  • road construction: noise barriers, underpasses, retaining walls
  • bridge construction: cornice design, pillar structuring, abutment structure

Application technology

  • laminar bond with PU-construction adhesive
  • selective fixing, also with double-sided tape or wire nails
  • early stripping is recommended
  • any commercially available release agent can be used
MULTI Rippenbruch

Ribbed fracture
Structure depth: 10mm
Size: 6000 x 1000mm

MULTI Rauputz

Rough plaster
Structure depth: 7mm
Size: 6000 x 950mm

MULTI Rustikal-Putz

Rustic plaster
Structure depth: 3mm
Size: 6000 x 4000mm

MULTI Natursteinoptik

Natural stone
Structure depth: 22mm
Size: 6000 x 1060mm

Multi-BESENSTRICH

Broom stroke
Structure depth: 3mm
Size: 5000 x 2500mm

Multi-RAUTE

Diamond
Structure depth: 1mm
Size: 2850 x 1220mm

Multi-ANTI-SLIP

Anti-Slip
Structure depth: 1mm
Size: 6000 x 1000mm

Multi-MINIATURA

Miniatura
Structure depth: 3mm
Size: 8000 x 1005mm

Multi-MINITRAPEZ

Mini-Trapeze
Structure depth: 4mm
Size: 4000 x 999mm

Multi-TRAPEZ

Trapeze
Structure depth: 25mm
Size: 3000 x 980mm

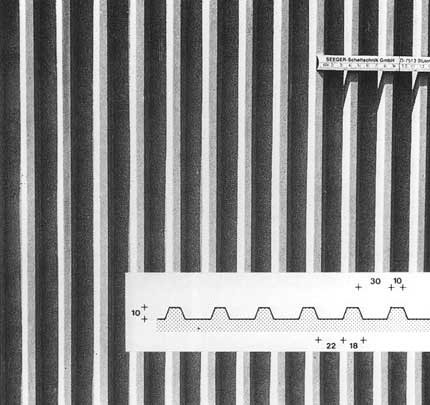

Multi-SPUNDWAND ENG

Sheet piling, narrow
Structure depth: 10mm
Size: 6000 x 1000mm

Multi-SPUNDWAND WEIT

Sheet piling, wide
Structure depth: 10mm
Size: 5000 x 900mm

Multi-WELLE

Wave
Structure depth: 14mm
Size: 6000 x 1000mm

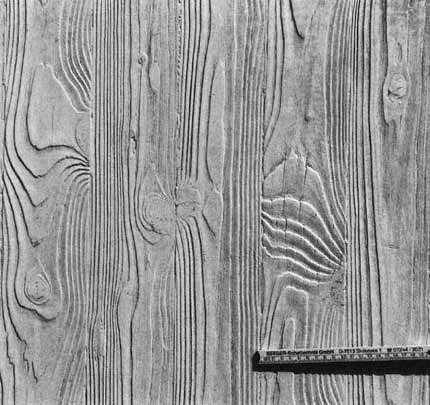

Multi-HOLZ RUSTIKAL

Rustic wood
Structure depth: 3mm
Size: 5000 x 900mm

Multi-Holzstruktur prägnant

Wood, succinct
Strukturtiefe: 5mm
Size: 2990 x 990mm

Multi-HOLZ DEZENT

Wood, discreet
Strukturtiefe: 2mm
Size: 5000 x 900mm

Multi-EIFEL

Eifel
Strukturtiefe: 15mm
Size: 2970 x 970mm

Multi-JURA

Jura
Strukturtiefe: 17mm
Size: 2970 x 970mm

Multi-BAMBUS

Bamboo
Strukturtiefe: 17mm
Size: 2990 x 990mm

Multi-ELEMENTA

Elementa
Strukturtiefe: 18mm
Size: 2990 x 990mm

Multi-KLINKERSTRUKTUR

Brick structure
Strukturtiefe: 5mm
Size: 5960 x 984mm

Multi-KLINKER EINLEGERASTER

Brick, Inlay grid
variable inlay format, Size: 6000 x 4000mm, available with concrete joint sealer

The sizes listed are available from stock.

Current pricelist for DEWA Multi-formliners incl. graduated prices:
